1b. ACI: X-Ray Spectroscopy\Microscopy: ACI: Bruker/Anton-Paar, XRD, D8 Advance A25/XRK900

What is it?
XRD is primarily used for phrase identification of crystalline materials and provide information on unit cell dimensions.

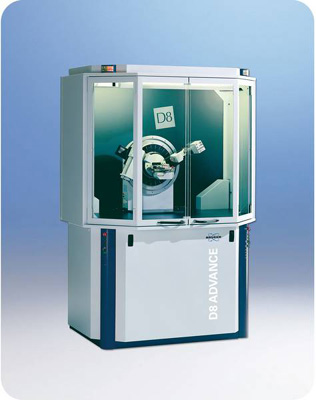

Manufacturer: Bruker

Model Name: D8 Advance A25/XRK900

Applications: Qualitative and quantitative phrase analysis, micro-structure analysis, non-ambient powder diffraction.

Instrument Overview: Sample is prepared onto sample holder and placed onto sample tray where it will be picked up to be placed on platform for analysis. Phrase identification and unit cell dimension can be interpreted from the result.

Technical features and specifications:
X-ray source is CuKα
Operating position: vertical
Step width: 0.0001°
Angular range of theta and 2-theta: 360°
Reproducibility of angle setting (theta and 2-theta): < +/- 0.0005°
Absolute accuracy (theta and 2-theta): < +/- 0.005°

Charges: NA

Instrument Manufacturer URL:
https://www.bruker.com/en/products-and-solutions/diffractometers-and-scattering-systems/x-ray-diffractometers.html

Detailed Specifications: NA
