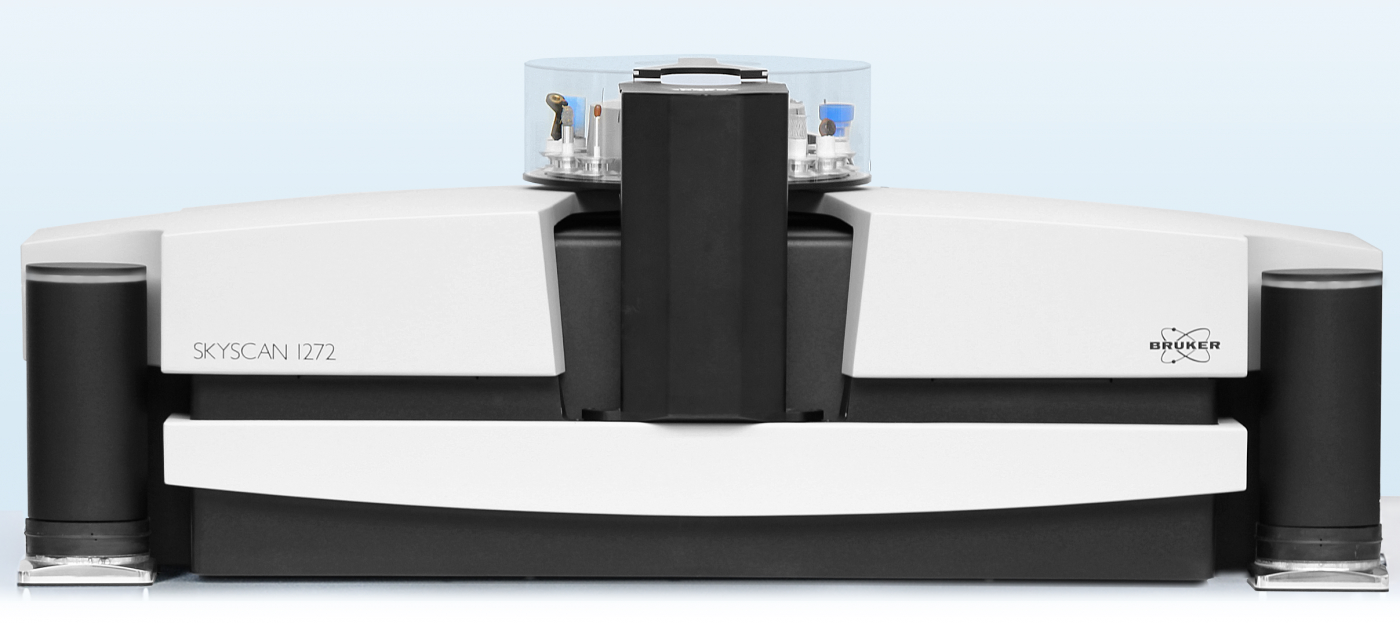

1b. ACI: X-Ray Spectroscopy\Microscopy: ACI: Bruker, Micro-CT, SKYSCAN 1272

What is it?
High-resolution 3D X-ray Microscopy (Micro-CT). Uses X-rays to create high-resolution cross-section mapping and 3D models of physical samples, without destroying the sample.

Manufacturer: Bruker

Model Name: SKYSCAN 1272

Applications: 3D scan and microstructure reconstruction.

Instrument Overview: High-resolution 3D X-ray Microscopy (Micro-CT). Uses X-rays to create high-resolution cross-section mapping and 3D models of physical samples, without destroying the sample.

Technical features and specifications:
X-Ray source: 20-100kV,10W, <5µm spot size @ 4W X-ray detector: 16Mp or 11Mp, 14-bit cooled CCD fiber-optically coupled to scintillator Max sample size: 75mm in diameter using offset scan (27mm in fast single scan) Detail detectability: 0.35µm (16Mp) or 0.45um (11Mp) at highest magnification

Charges:
NA

Instrument Manufacturer URL: https://www.bruker.com/en/products-and-solutions/microscopes/3d-x-ray-microscopes/skyscan-1272.html

Detailed Specifications:
https://www.dksh.com/sg-en/products/ins/bruker-skyscan-1272
