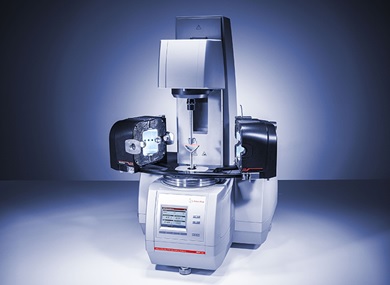

1c. ACI: NMR\Physical\Thermal Characterisation: ACI: Anton Paar, Rheometer, MCR 302

What is it?
Rheology is used to describe and assess the deformation and flow behavior of materials. Fluids flow at different speeds and solids can be deformed to a certain extent.

Manufacturer: Anton Paar

Model Name: MCR 302

Applications: Long term measurements of sample, Suitable for low viscosity samples, Study flow behavior of fluid samples in response to applied force.

Instrument Overview: Performs a variety of rheological tests, such as rotational, oscillatory, and a combination of both. Measuring systems: cone-plate (with radius R, cone angle α, truncation a); plate-plate (with radius R, distance between plates H); and concentric cylinders (with bob radius Ri and cup radius Re and internal angle α at the tip of the bob).

Technical features and specifications:
Sensitivity: 7.5nNm to 2nNm
Pressure range: Up to 1000 bar
Torque range: 0.5 nNm to 230 mNm (oscillation)
Maximum speed: 3000 1/min
Maximum angular velocity: 314 rad/s (angular)
Normal force range: 0.005-50N
Normal force resolution: 0.5mN

Charges: NA

Instrument Manufacturer URL:
https://www.anton-paar.com/sg-en/products/details/rheometer-mcr-102-302-502/

Detailed Specifications: NA
