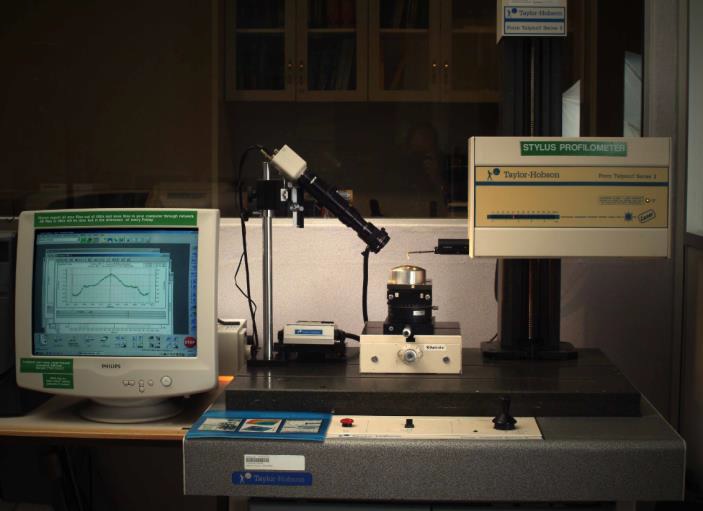

Stylus Profilometer (Taylor-Hobson Series 2)

Manufacturer: Taylor-Hobson

Model Name: Form Talysurf -Series 2

Applications:
** Measurement of 2D surface profile and dimensions
** Measurement of waviness and roughness of surfaces
** 3D measurement of micro-features
** Measurement of form error

Instrument Overview: Stylus profilometer is used to measure surface profile with a tactile stylus through line scan and area scan

Technical features and specifications:

** Vertical resolution: 10 nm
** Data sampling in x-axis: 0.125 µm
** Z column transverse range: 700 mm
** Maximum scan size: 120 (x) X 100 (y) X 12 (z) mm
** Straightness in x-axis: 110 nm over 200 nm
