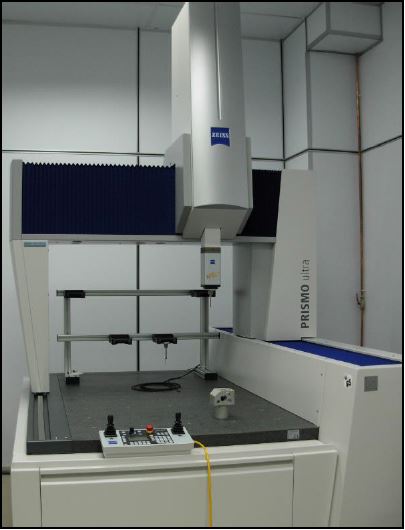

Zeiss Prismo Ultra CMM
What is it?
Contact Coordinate Measuring Machine
Manufacturer: Carl Zeiss AG
Model Name: Prismo Ultra 9/13/7
Applications:
** Cross sectional profile measurement
** Coordinates and dimensional measurements
** Tolerance measurement - compare actual part against CAD model
** Gear measurement
Instrument Overview: Prismo Ultra CMM is a high accuracy and high speed co-ordinate measuring machine. It is used for high accuracy inspection and precision measurements of dimensions and surface profile of any kind of geometry in three-dimension for large and small objects. It can perform high-speed dynamic 3D scanning and compensate the radius of curvature of the scanning probe automatically. The system is able to perform dimensional and form tolerance analysis.
Technical features and specifications:
** MPEE: 0.6 + L/500 um
** MPEP: 0.6 um
** MPETHP: 1.5 um in 45 seconds
** Resolution: 20 nm
** Maximum scan range: 900 (x) X 1300 (y) X 650 (z) mm
** Maximum weight of workpiece: 1000 kg
Charges:
TBA
Instrument Manufacturer URL: NA
Detailed Specifications:
NA
