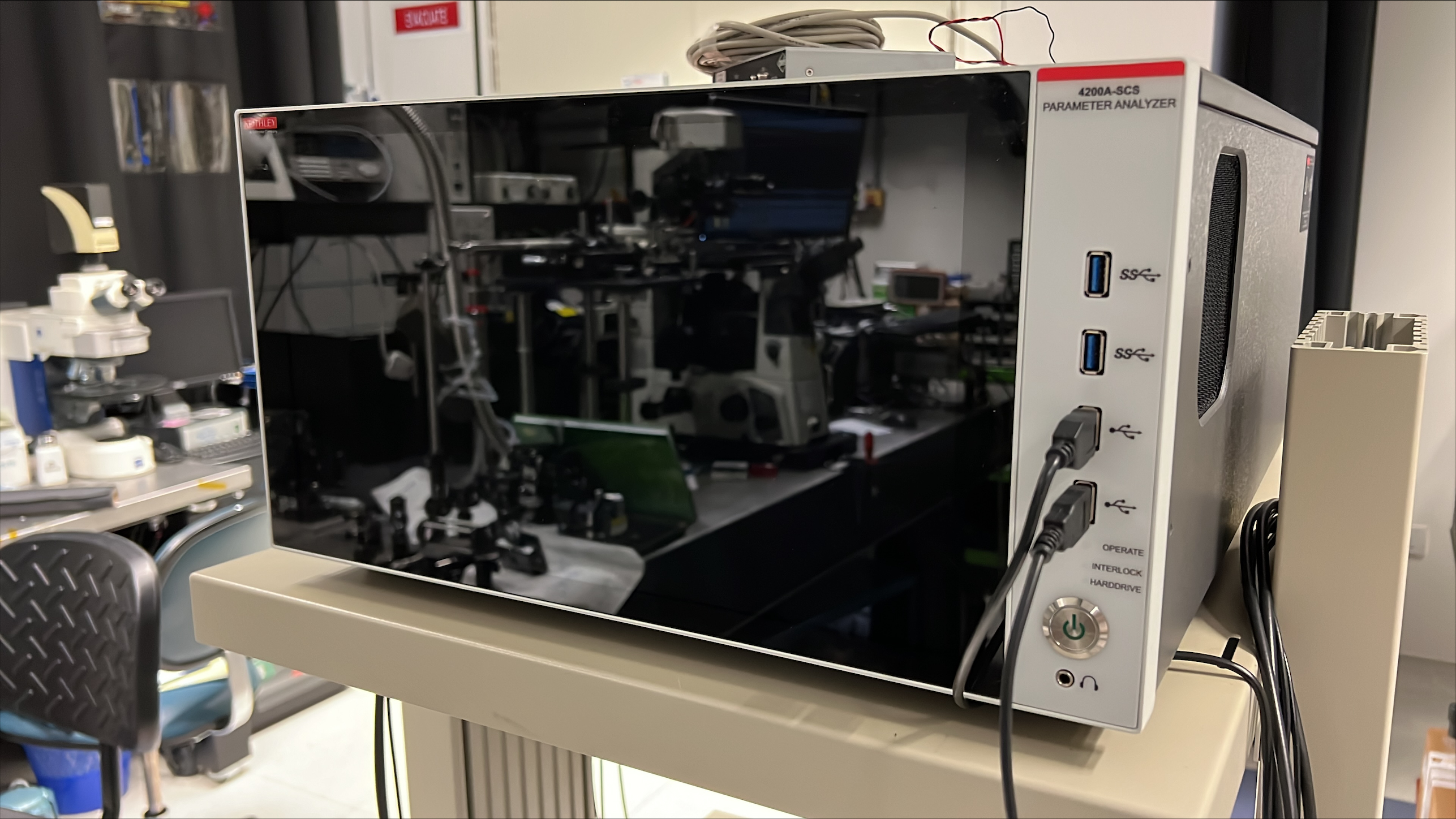

Analyzer: Keithley PARAMETER ANALYZER (410000019003)

What is it?
It is a customizable and fully-integrated parameter analyzer that provides synchronized insight into current-voltage (I-V), capacitance-voltage (C-V), and ultra-fast pulsed I-V characterization.

Manufacturer: Keithley (A Tektronix Company)

Model Name: A-4200A-SCS

Applications: • Bio FETs and Sensors ; • MOSFET, BJT Transistors; • Materials Characterization • Non-volatile Memory Devices; • Resistivity & Hall Effect Measurements • Interface Trap Density; • 1/f Noise Testing; • NBTI/PBTI; • III-V Devices • Failure Analysis; • Nanoscale Devices; • Diodes and pn Junctions; • Solar Cells • Sensors; • MEMS Devices; • Electrochemistry; • LED and OLED

Instrument Overview: The Ultimate Parameter Analyzer for Materials, Semiconductor Devices and Process Development. Perform I-V, C-V and pulsed I-V characterization with speed, clarity and confidence with the powerful Clarius software. (The analyzer includes the following modules, a. 4200A-SCS Keithley PARAMETER ANALYZER MAINFRAME; b. 4200-SMU MEDIUM POWER SOURCE-MEASURE UNIT (x3 units); c. 4200-PA REMOTE PREAMPLIFIER MODULE (x2 units); d. 4225-PMU ULTRA-FAST PULSE MEASURE UNIT (1 unit); e. 7078-TRX-GND 3-SLOT MALE TRIAX TO BNC ADAPTER (GUARD REMOVED) (3 units)

Technical features and specifications:
I-V Source Measure Units (SMUs) • ±210 V/100 mA or ±210 V/1 A modules; • 100 fA measure resolution; • 10 aA measure resolution with optional preamp; • 10 mHz – 10 Hz very low frequency capacitance measurements; • 100 μF load capacitance; • 4-quadrant operation; • 2 or 4-wire connections; Pulsed I-V Ultra-fast Pulse Measure Unit (PMU) • Two independent or synchronized channels of high-speed pulsed I-V source and measure; • 200 MS/s, 5 ns sampling rate; • ±40 V (80 Vp-p), ±800 mA; • Transient waveform capture mode; • Arbitrary waveform generator for multi-level pulse waveform with 10 ns programmable resolution; Remote Preamplifier/Switch Module (RPM) • Automatically switches between I-V, C-V, and ultra-fast pulsed I-V measurements • Extends current sensitivity of the 4225-PMU to tens of picoamps • Reduces cable capacitance effects

Charges:
N.A.

Instrument Manufacturer URL: https://www.tek.com/en

Detailed Specifications:
https://www.tek.com/en/datasheet/4200a-scs-parameter-analyzer
