What is it?

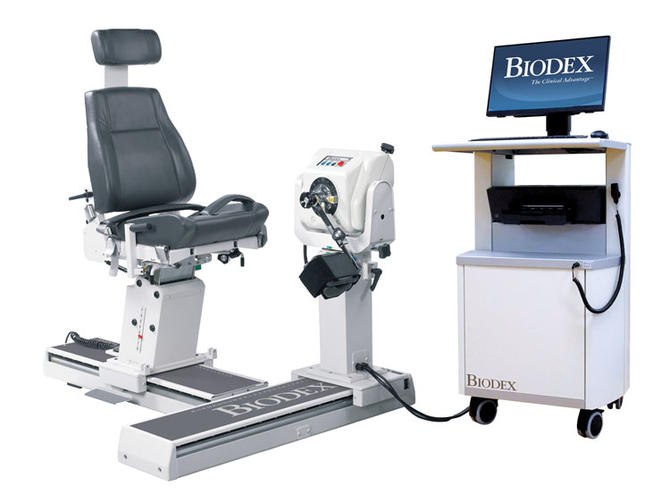

A dynamometer which assesses physical impairments and helps provide patients a fast, effective and documented return to function
Manufacturer: Biodex
Model Name: System Pro 4
Applications: Sports and orthopedic medicine, pediatric medicine, neurorehabilitation, occupational medicine, older adult health and research
Instrument Overview: Featuring six modes of operation, the Biodex System 4 continues to offer pioneering breakthroughs in neuromuscular testing and rehabilitative technology. Biodex assessments of physical impairments provides patients a fast, effective, documented return to function. The Biodex System 4 is unusually sensitive to your patient's limits. Progressive and interactive features keep you in complete control. Dynamic and static muscle loading environments provide unlimited combinations of technique and application.
Technical features and specifications:
1) Dimensions:
- T-Base with Dynamometer and Positioning Chair: 52" w x 65" d x 60" h (132 x 165 x 152 cm)
2) Clinical Data Station: 25" w x 19" d x 41" h (64 x 48 x 104 cm)
3) Accessory Cart: 33" w x 20" d x 40" h (85 x 51 x 102 cm)
4) Total Operating Floor Space Required: 64 sq. ft. (6 sq. m)
5) Clinical Data Station:
– PC with Windows 10 Enterprise LTSC, Advantage BX™ Software, 22" flat panel touchscreen with integrated speakers.
– HP InkJet printer (US only).
6) Included accessories: ankle, knee, shoulder, elbow, wrist and hip attachments, accessory cart and wall chart.
7) Performance:
– Concentric speed up to 500 deg/sec
– Eccentric speed up to 300 deg/sec
– Concentric torque up to 500 ft-lb (680 Nm)
– Eccentric torque up to 400 ft-lb (544 Nm)
– Passive speed as low as .25 deg/sec
• Passive torque as low as .5 ft-lb
• Isotonic torque as low as .5 ft-lb
Charges:
TBC
Instrument Manufacturer URL:Biodex | Physical Medicine and Rehabilitation, Nuclear Medicine Supplies and Accessories, Medical Imaging Tables and Accessories
Detailed Specifications:
System 4 Pro™ - Isokinetic Systems - Physical Medicine | Biodex
