Electrical measurement: Excitonic characterization system (cryoadvance-50)

What is it?
 cryogenic station with optical and electrical characterization setup

Manufacturer:  Montana instruments

Model Name:  cryoadvance-50

Applications:  Low-temperature optical and electrical measurements

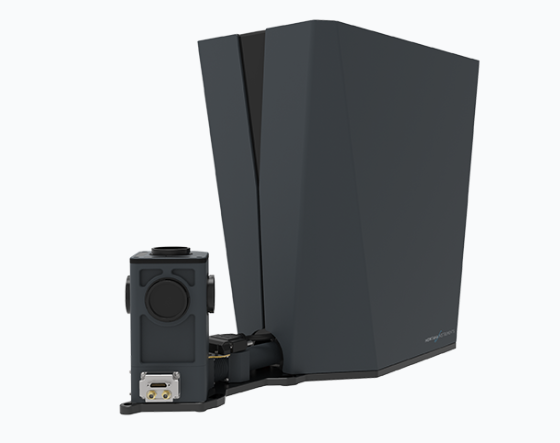

Instrument Overview: Closed-cycle Optical Cryostat

Technical features and specifications:
Closed-cycle <3.2K-350K Optical Cryostat System includes: 50mm Cryostation Platform - automated, optical cryostat system and sample environment with closed-cycle, cryogen-free cryocooler. The 50mm diameter sample platform includes the following standard options: 1) 20x DC platform feedthroughs, 2) one side-panel with 2x SMA RF channels and a 25-channel DC with Mini D25 connector. Platform has one additional I/O port that is configurable using standard side-panel options: dual fiber, dual RF, or KF25 vacuum port. System includes touchscreen user-interface, a water-cooled Helium compressor with 30-ft (9m) hoses & control cable, and one (4U) rack-mountable system controller unit, and one (6U) rack-mountable vacuum control unit with daphram pump.

Charges:
 NA

Instrument Manufacturer URL: https://www.montanainstruments.com/

Detailed Specifications:
1) <3.2 - 350K Variable temperature control across the entire range. 2) Cryogen-free/closed-cycle Avoid expense, hassle, and supply challenges with LHe. 3) Push button cooling Simply input the target temperature and press COOLDOWN. 4) Turn-key equipment solution Minimal installation demands get users up and running faster. 5) External control Our Galaxy software utilizes intuitive, flexible touchscreen control. 6) REST API Automate temperature setpoints, stepping, and ramping.
