F Techniques: Leica Stellaris

What it is:
STELLARIS 8 FALCON (FAst Lifetime CONtrast) is the future of functional imaging. Harness the power of fluorescence lifetime to investigate cellular physiology and explore dynamics in living cells. STELLARIS 8 FALCON is a fully integrated solution for Fluorescence Lifetime Imaging (FLIM) and enables video-rate lifetime imaging acquisition for rapid kinetic studies in live cells.

Manufacturer: Leica

Model Name: STELLARIS 8 FALCON

Applications: FILM-FRET, FAST FILM, 3D FILM, Confocal, Live-Cell Imaging
Click HERE to Booking System.

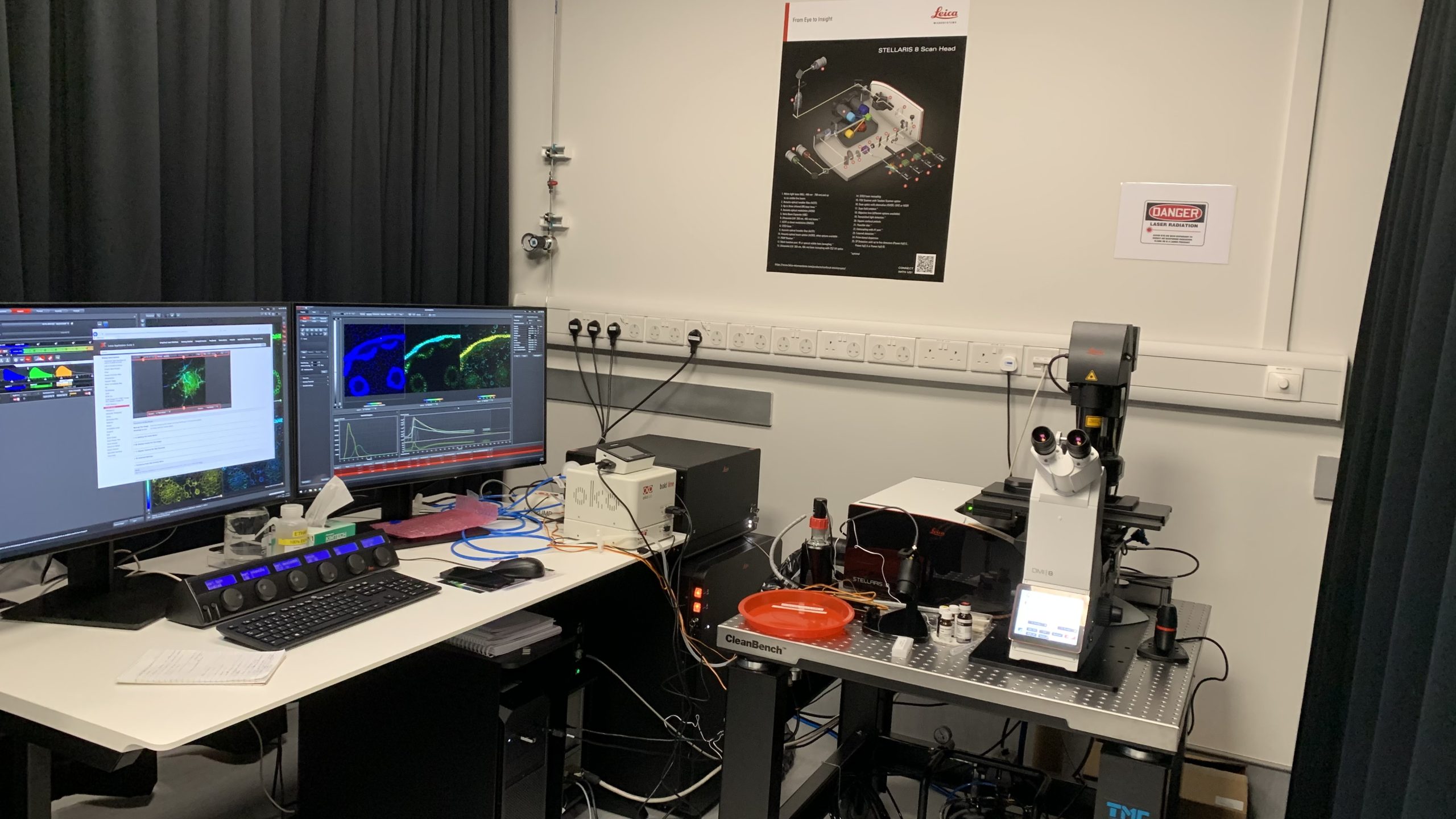

Instrument Overview: In this system, Acousto Optical Beam Splitter (ABOS) technology has replaced the dichroic mirror based emission detection with prism based spectral detection for up to 5 channels simultaneousely. It has a 405nm excitation laser, in addition to tuneable White Light Laser (WLL) for every nm to excite any fluorophore in the range of 440-790 nm, making it suitable for any fluorophore within this range. Its detection range is also suitable for NIR dyes, with detection ranges from 410- 850 nm. The inbuilt in Tau Sense option allows to extract fluorophore lifetimes from confocal image data. The system is also equipped with a stage heater, objective heater and chamber to deliver humidified CO2-rich air.

Technical features and specifications:
Objective lens: 5x, 10x, 20x (Air), 63x (oil), 63x (glycerol), 63x (water)
Filters: 405, CFP, FITC, RHOD
Light sources: Diascopic/Episcopic (LED)
Lasers: 405nm, White light laser with pulse picker (Pulse frequency 80 MHZ) 440-790nm.
Detectors: Power HyD X (Position 2,4), Power HyD S (Position 1), Power HyD R (Position 5)
Spectral detector: 1 Power HyD S detector on the central position 3 (detection range 410-850nm)
Stage: Super Z Galvo Stage
Incubator: Okolab incubating system including humidity sensor & CO2 mixer for chambered slide holder & 35mm glass bottom dish
Software: LASX

Charges:
Click HERE for our latest price list.

Instrument Manufacturer URL: https://www.leica-microsystems.com/products/confocal-microscopes/p/stellaris-8-falcon/

Detailed Specifications:
https://tinyurl.com/AMP-Stellaris

Equipment URL:
