Magnetometry: Switching & Magnetoresistance Measurement System

What is it?
This System can be used to measure the room temperature magnetoresistance and switching characteristics of the magnetic tunneling Junctions (MTJs).

Manufacturer: Home Built

Model Name: NA

Applications: To characterize the MTJs

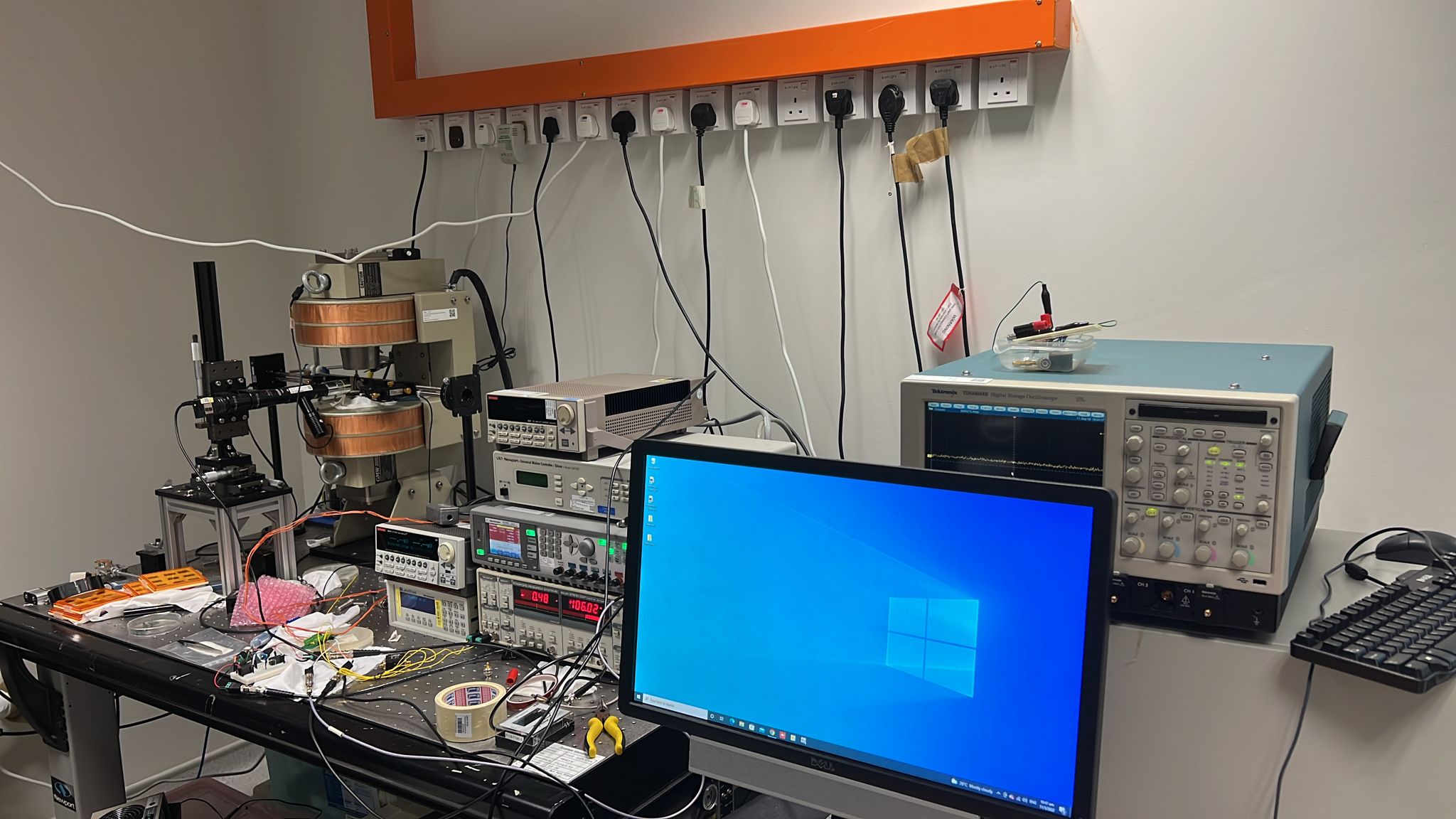

Instrument Overview: The set up consists of water cooled GMW electromagnet integrated with Lock-in, Electrical source, Pulse generator and oscilloscope, where we can measure the angle dependent electrical and switching characteristics of the MTJs.

Technical features and specifications:
Magnetic fields up to +/- 3 kOe, and only room temperature measurements. The pulse widths from few ns to micro seconds.

Charges:
NA

Instrument Manufacturer URL: NA

Detailed Specifications:
NA
