What is it?

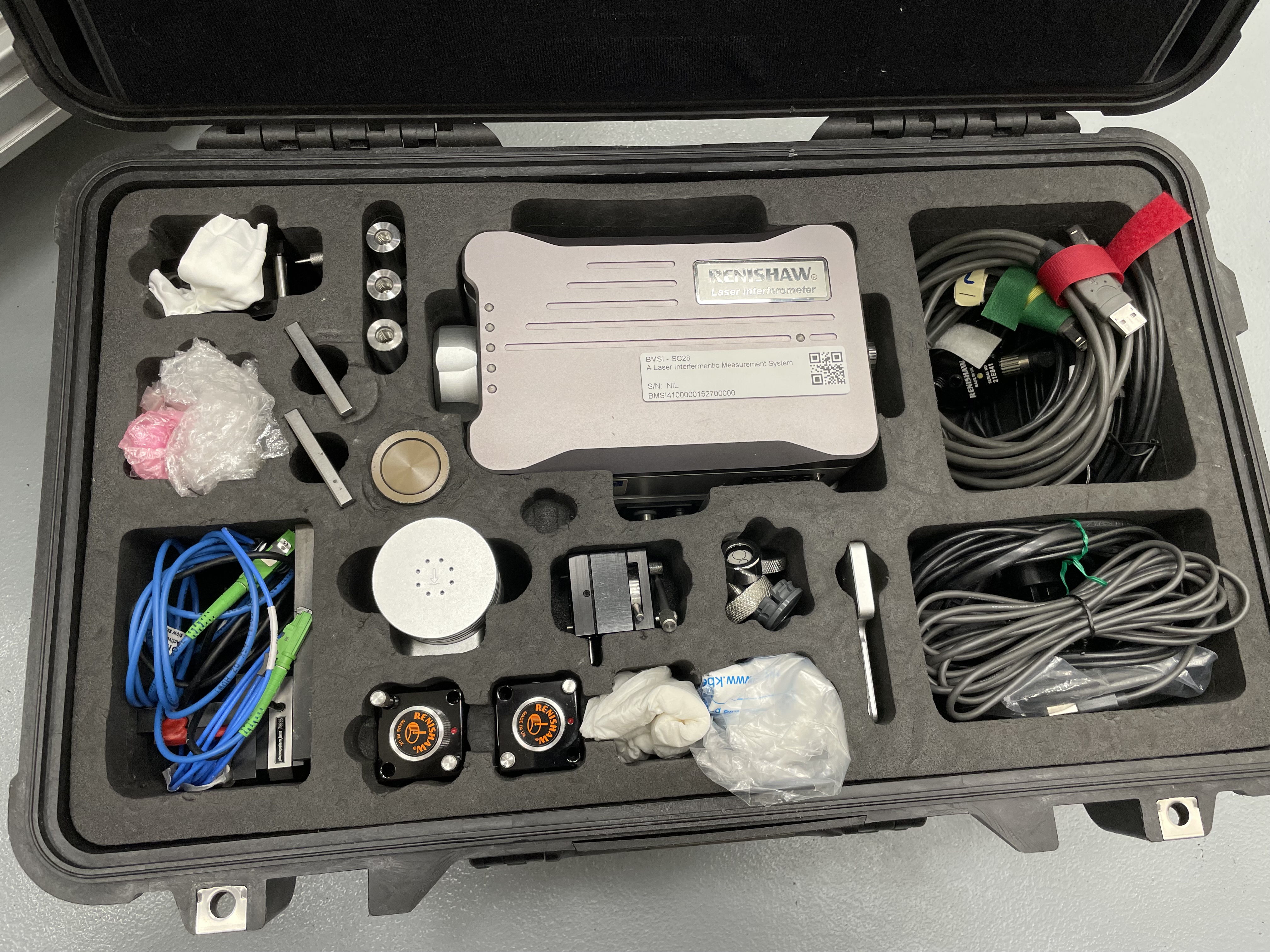

It's an secondary portable laser calibration standard.
Manufacturer: Renishaw
Model Name: XL-80
Applications: Measurement traceability dissemination by calibrating surface table flatness.
Instrument Overview: The Renishaw XL-80 laser interferometer offers the ultimate in high performance measurement and calibration for motion systems, including CMMs and machine tools.
Technical features and specifications:
Linear measurement accuracy ±0.5 ppm over the whole environmental range ie, from 0 ºC - 40 ºC (32 ºF - 104 ºF) and 650 mbar - 1150 mbar. Readings can be taken at up to 50 kHz, with a maximum linear measurement speed of 4 m/s and a linear resolution of 1 nm; even at maximum speed.
Charges:
Yes, by hourly rate. To be operated by qualified NMC staff only.
Instrument Manufacturer URL: https://www.renishaw.com/en/renishaw-enhancing-efficiency-in-manufacturing-and-healthcare--1030
Detailed Specifications:
https://www.renishaw.com/en/xl-80-laser-system--8268
