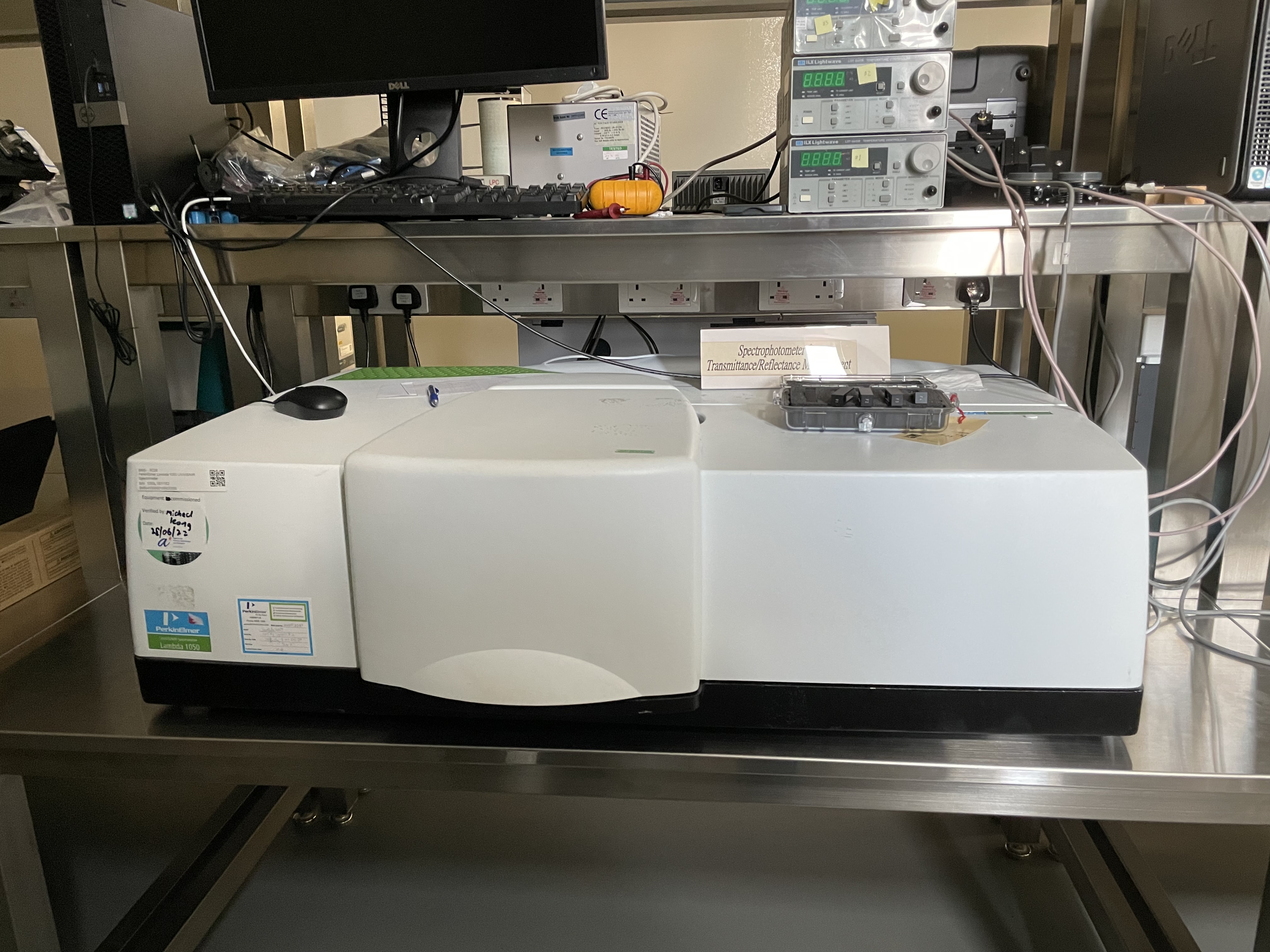

Metrology: PerkinElmer Lambda 1050 UV/VIS/NIR Spectrometer

What is it?
A spectrophotometer for light transmittance and reflectance measurement and calibration

Manufacturer: PerkinElmer Inc.

Model Name: Lambda 1050

Applications: For applications such as highly reflective and anti-reflective coatings, all types of glass from clear to highly absorbing safety glass, optical filters of all types from the deep UV through the NIR and many more applications requiring the best photodynamic range and the widest possible sampling capability.

Instrument Overview: LAMBDA 1050 is a Double beam, double monochromator, ratio recording UV/Vis/NIR spectrophotometers with microcomputer electronics, controlled by DELL™ PC or compatible personal computer.

Technical features and specifications:
Wavelength Range (N2 purge required below 185 nm) 175 nm - 3300 nm UV/Vis Resolution ≤ 0.05 nm ≤ 0.05 nm NIR Resolution ≤ 0.20 nm ≤ 0.20 nm Stray Light At 200 nm 12 g/l KCl USP/DAP method > 2 A > 2 A At 220 nm 10 g/l NaI ASTM method ≤ 0.00007%T ≤ 0.00007 %T At 340 nm 50 mg/l NaNO2 ASTM method ≤ 0.00007%T ≤ 0.00007 %T Wavelength Accuracy UV/Vis ± 0.080 nm ± 0.080 nm NIR ± 0.300 nm ± 0.300 nm Wavelength Reproducibility UV/Vis (Deuterium lamp lines) ≤ 0.010 nm ≤ 0.020 nm NIR (Deuterium lamp lines) ≤ 0.040 nm ≤ 0.080 nm

Charges:
NA (for calibration only)

Instrument Manufacturer URL: www.perkinelmer.com

Detailed Specifications:
https://www.perkinelmer.com/product/lambda-1050-2d-base-inst-no-sw-l6020055?utm_source=Google&utm_medium=cpc&utm_campaign=APP-TEC-2022-APAC-PaidSearch-SCH-DG-ZZ&sfdc_id=7014V000002EAky&LS=PPC&adgroup=120799626141&ad=529520763317&keyword=lambda%20uv%20vis&gclid=EAIaIQobChMIzaDk2IOq9QIVFZlmAh2UkQ1REAAYAiAAEgKj7vD_BwE
