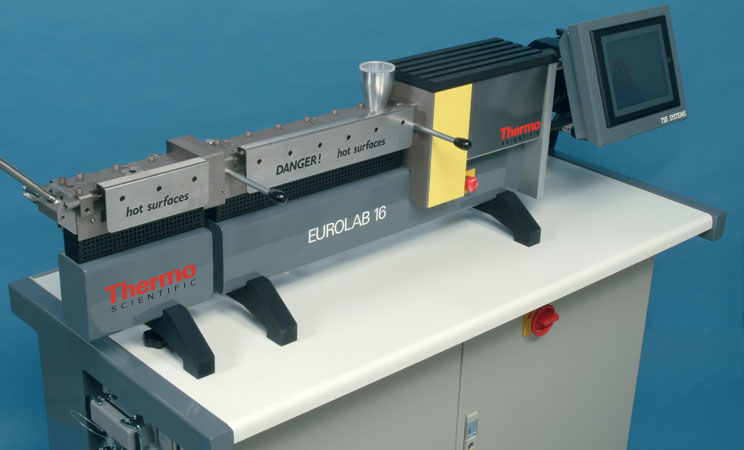

Polymer processing: Twin-screw extruder (PRISM EUROLAB 16 XL )

What is it?
Twin-screw extruder

Manufacturer: Thermo Fisher Scientific Inc

Model Name: PRISM EUROLAB 16 XL

Applications: : Compounding of general plastics

Instrument Overview: The PRISM EUROLAB 16 XL twin-screw extruder is used for research, development, and small scale production.

Technical features and specifications: Max. Temperature 350°C Width (Metric) 690 mm Height (Metric) 1120 mm Barrel Bore Diameter 16 mm Length (Metric) 1230 mm Screw Type Fully segmented, co-rotating Description Process 16 Parallel Twin-Screw Extruder Voltage 3 x 400 V Typical Output 0.4 kg/h up to 3 kg/h (material dependent) Max. Screw Speed 10 – 600 rpm Amperage 25 A Barrel Zones 8 zones. 7 x 5 L/D electrical heated (optional water cooled) Barrel Length L/D 40 L/D Unit Size Each


Charges:
NA

Instrument Manufacturer URL:
Detailed Specifications:
