Polymer processing: Ultra micro 3 layers co-ex film blowing line

What is it?

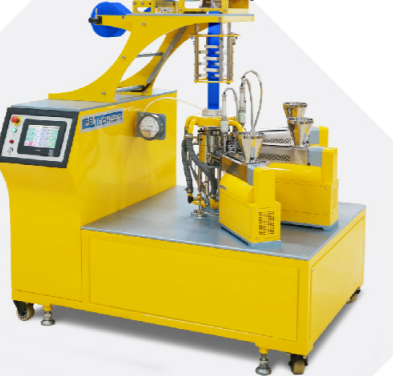

3-Layer Blow Film Extruder

Manufacturer: Lab Tech Engineering Company Ltd

Model Name: Ultra Micro 3-layer Co-Ex Film Blowing Line

Applications: To produce polymer films of 3 different layer

Instrument Overview: small scale 3 layer CO-EX film blowing line.

Technical features and specifications: Conical Extruders LE8-30/C Conical Screw Diameter: 18mm at in-feed, 8mm at end Screw L/D ratio: 30 Servo Motor Power: 400W Max Screw Drive Speed: 300rpm Heater Power: 650W Max Processing Temperature: 300degC Max allowed pellet size (cylindrical): 3 x 3mm Barrel resin capacity: 12.9g Film Blowing Tower LF-150 Layflat film width capacity: 100mm Die type: 3-layer pancake die Die lip diameter: 28mm Lip gap size: 1.5mm Die and feed pipe resin capacity: 8.7g Max line speed (Haul-off and winder motor): 5m/min Max air blow rpm setting: 3000rpm Air ring blower power: 400W Air compressor power: 94W Die to haul-off height distance: 705mm Die heater total power: 1350W Max die processing temperature: 300degC


Charges:
NA

Instrument Manufacturer URL: https://www.labtechengineering.com

Detailed Specifications: NA
